•Wired operation
•Partition feature (4 area)
•LED indicator
•Ethernet / Network connection (optional)
•With PSTN (Communication over landline)
•GSM / GPRS card can be added.
•WI-FI Card can be added.
•12 V - 7 Ah Battery not included.
Product Code: M.U.HAS.00042

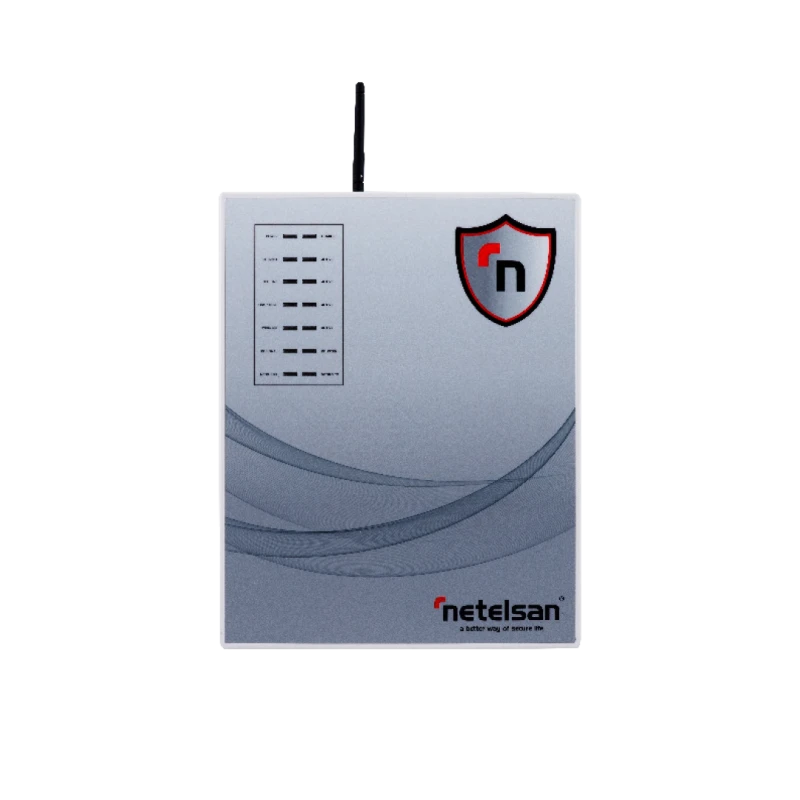

WIRED or WIRELESS
•Wired or wireless operation
•Partition feature (4 zones)
•LED indicator
•Ethernet / Network connection (optional)
•With PSTN (Communication over landline)
•GSM / GPRS card can be added.
•WI-FI Card can be added.
•12 V - 7 Ah Battery not included.
Product Code: M.U.HAS.00040
Partition
4 Zones
On the station; 8 Physical + 8 Zone Multiplexing = 16 Zones
With the Extra Zone Card; 8 Physical + 8 Zone Multiplexing =
Number of Zones
16 Zones
Total 32 Zones
30 User Passwords (Authorizable according to zones)
4 Silent Alarm Codes (Separate for Each Zone)
Passwords
4 Panic Alarm Passwords (Separate for Each Zone)
1 PC/Remote connection Password
Remote Control
40 Pieces (Separately encrypted and authorized by zones)
40 (Authorizable according to zones)
Phone Numbers
(Instant call when alarm goes on, Remote arming-off)
40 Sms Numbers (Authorizable according to zones)
Sms Numbers
(Receiving information via SMS, setting up-closing)
Connection to 2 different news centers at the same time via TCP,
News Center
Fixed Telephone line or GSM
Activation Times
4 Different Time Selections
Deactivation Times
4 Different Times (Different for each zone)
Weekly Program Settings
Ability to set weekly program hours separately for 4 zones
Programmable Relays 2 x NO 250V 5A programmable relays
868Mhz Frequency, 128Bit AES encryption, Bidirectional RF communication,
Wireless Features
Communication distance up to 300 meters in open area, Extending coverage with RF signal repeater
Jammer Detection feature, Capacity to add 100 Wireless modules
The last 1000 records are stored in the device memory with date
Record storage and time information. Recordings can be watched through the PCapplication.
All settings can be made via PC. Possibility of connection with USB
PC Softwarecable, Ethernet and WIFI module if available.
Software updates can be done from a computer with a USB cableand PC software.
Software update
PC software automatically check itself via internet if it is the latestversion.
Supply Voltage 230V AC 50 Hz
Çalışma Gerilimi 12V DC
Battery 1 adet 12V DC 7Ah
Battery charging current Max. 0.5A
Transformer Power Supply 25W – 18V
Output Number of Detection Zones
8 Zones as Standard on the Switchboard, with Zone Multiplexing
additional 8 Zones 1 Fire Zone with Extra Zone Card; 8 Zones,
Zones additional 8 Zos with multiplexing
End of Line Resistances 470R 1/4W for zone lines, 1K 1/4W for lines to be used as zone doubling, 4.7K 1/4W for fire line
Max Number of Wired Detectors
100 Netelsan brand PIR Detectors. Unlimited Wired
Magnetic Sensor
Max Number of Wireless
100 Netelsan Wireless Detectors, Modules.
Detectors
Max Number of Fire Detectors
10 Netelsan Conventional Smoke Detectors, 1 Netelsan
Conventional Gas Detector
Max Number of Keypads
4 Netelsan LCD Screen Keypads
Max Number of Sirens
2 Netelsan Burglar Alarm Sirens
Sizes
29.2 x 36.5 x 8 cm
Operating Temperature
-10°C / +55°C
Humidity
Up to %95
Mode of Installation
Surface Mounted
Cable Entries
Overhead
